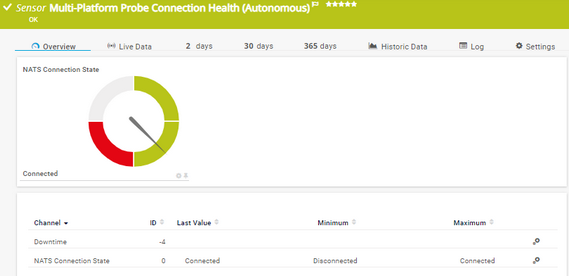

<%NUMBERING1%>.<%NUMBERING2%>.<%NUMBERING3%> PRTG Manual: Multi-Platform Probe Connection Health (Autonomous) Sensor

Performance impact

This sensor has a very low performance impact.

Sensor creation

PRTG automatically creates this sensor on the PRTG core server when you enable multi-platform probe connections under Setup | System Administration | Core & Probes.

Lookups

This sensor uses lookups to determine the status values of one or more channels.

Multi-platform probe

Manual: Multi-Platform Probe for PRTG (PDF)

Primary Channel

Select a channel from the list to define it as the primary channel. In the device tree, PRTG displays the last value of the primary channel below the sensor's name. The available options depend on what channels are available for this sensor.

You can set a different primary channel later by clicking below a channel gauge on the sensor's Overview tab.

Graph Type

Define how this sensor shows different channels:

• Show channels independently (default): Show a graph for each channel.
• Stack channels on top of each other: Stack channels on top of each other to create a multi-channel graph. This generates a graph that visualizes the different components of your total traffic.
  You cannot use this option in combination with manual Vertical Axis Scaling (available in the channel settings).

Stack Unit

This setting is only visible if you select Stack channels on top of each other above.

Select a unit from the list. PRTG stacks all channels with this unit on top of each other. By default, you cannot exclude single channels from stacking if they use the selected unit. However, there is an advanced procedure to do so.

Result Handling

Define what PRTG does with the sensor result:

• Discard result (default): Do not store the sensor result.
• Store result: Store the last sensor result in the \Logs\sensors subfolder of the PRTG data directory on the probe system. The file name is Result of Sensor [ID].log. This setting is for debugging purposes. PRTG overwrites this file with each scanning interval.

This option is not available when the sensor runs on the hosted probe of a PRTG Hosted Monitor instance.

In a cluster, PRTG stores the result in the PRTG data directory of the master node.

Downtime

In the channel table on the Overview tab, this channel never shows any values. PRTG uses this channel in graphs and reports to show the amount of time in which the sensor was in the Down status

NATS Connection State

The state of the connection to the NATS server

• Up: Connected, Disabled
• Down: Disconnected
• Unknown: Unknown

If this sensor remains in the Down or Unknown status, check your configuration in Setup | System Administration | Core & Probes.

This channel is the primary channel by default.
